Bass Neck Pocket Options

Warmoth bass parts adhere to Fender's® vintage/original neck-heel and neck-pocket dimensions, except when noted. Many other manufacturers also use these specs, but they are not universal - even among Fender® products. Accurate measurement is the only way to ensure compatibility of parts.

4-String Bass

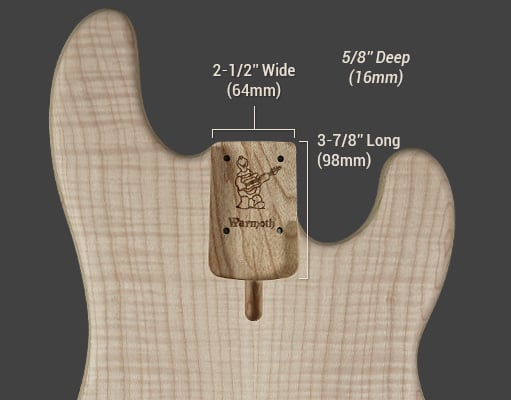

4-String Bass Neck Pocket
4-String Bass Neck Pocket Dimensions

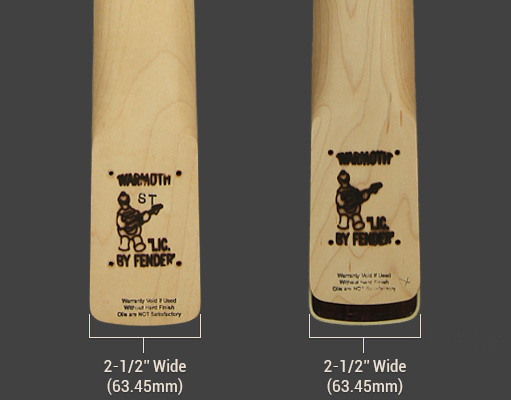

4-String Heels (20 & 21 Frets)
4-String Bass Neck Heel Dimensions
  • J Bass® and P Bass® heels and neck pockets have the same measurements and are interchangeable:
    • Width = 2-1/2" (63.45 mm)
    • Length = 3.875" (98.4 mm)
    • Pocket Depth = 5/8" (16 mm)
  • Warmoth does not offer bass necks or neck pockets with a squared Tele®-style heel shape.

5-String Bass

Warmoth's Deluxe 5 replacement bass necks adhere to the specs and dimensions of Fender's® original 4-bolt American Deluxe 5 Bass. We do not offer a 5-bolt configuration.

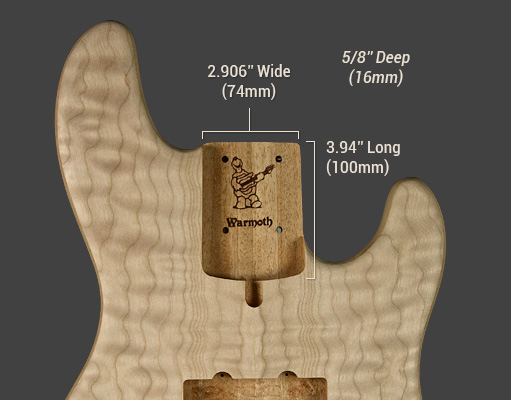

Deluxe 5 Bass Neck Pocket
Deluxe 5 Bass Neck Pocket Dimensions

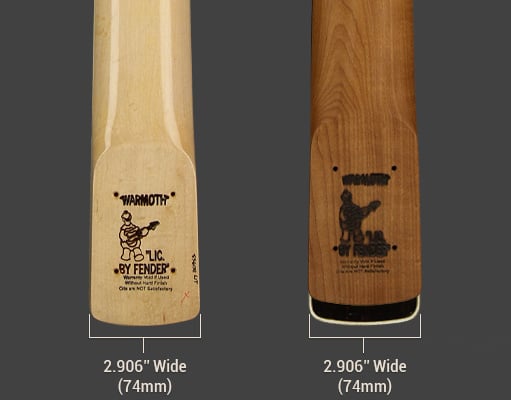

Deluxe 5 Heels (20 & 21 Frets)
Deluxe 5 Bass Neck Heel Dimensions
Deluxe 5 Bass neck heels and neck pockets have the same measurements and are interchangeable:
  • Width = 2.906" (74 mm)
  • Length = 3.94" (100 mm)
  • Pocket Depth = 5/8" (16 mm)

J Bass® 5 MIM Bass

The J Bass® 5 MIM necks and bodies were patterned after the Fender® Made in Mexico Standard 5 bass. Our J Bass® 5 MIM bodies are designed to fit our J Bass® 5 MIM necks only


Other Bass Models

Short Scale Bass

Warmoth's 30" and 32" Short Scale Bass necks are compatible with Warmoth Short Scale Bass bodies only.

Gecko 5 & 6 Bass

Warmoth's Gecko bass necks are compatible with Warmoth Gecko bodies only.


Known Incompatibilities

The following bass models are known to be incompatible with Warmoth replacement bodies and necks:

  • Music Man Basses®
  • G & L Basses®
  • P Bass® Deluxe
  • J Bass® Deluxe
  • P Bass® Special
  • P Bass® "Lyte"

If you have compatibility questions regarding a specific guitar neck or body, please contact our Parts Tech for assistance by emailing partstech@warmoth.com or calling (253) 845-0403.
