Guitar Body Contour Options
Strat®-style Tummy and Forearm contours may be added to most Warmoth bodies that don't come standard with them.

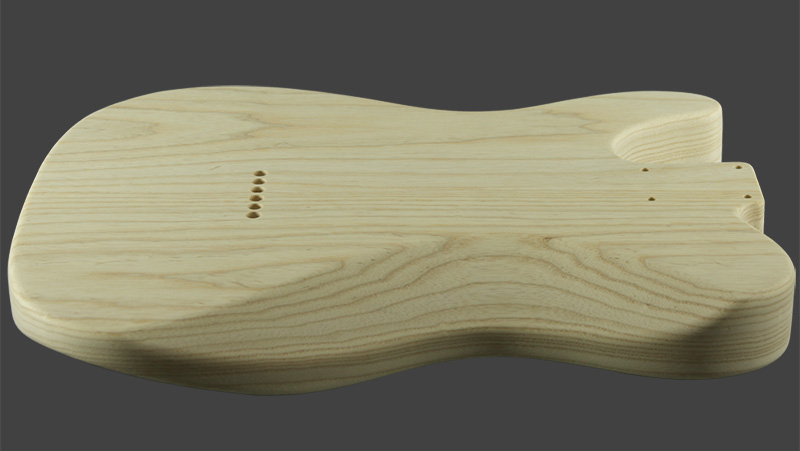

Tummy Contour
A Tummy Contour allows the guitar to sit closer to your body, at a more comfortable angle.

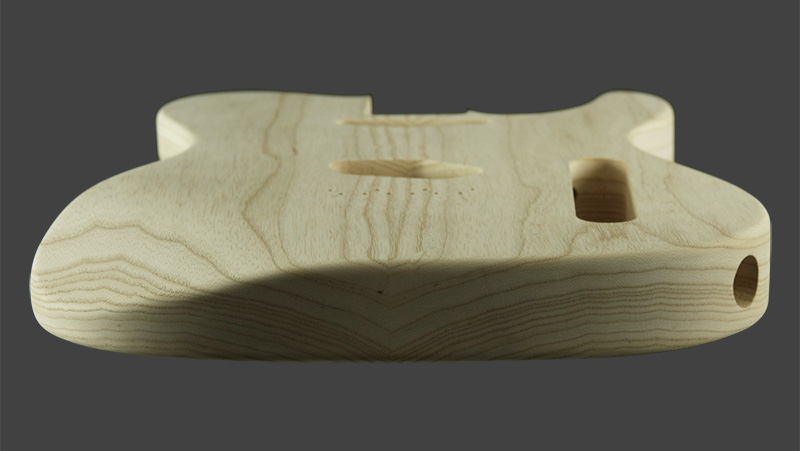

Forearm Contour
The Forearm Contour increases comfort for the picking arm where it contacts the top of the body.

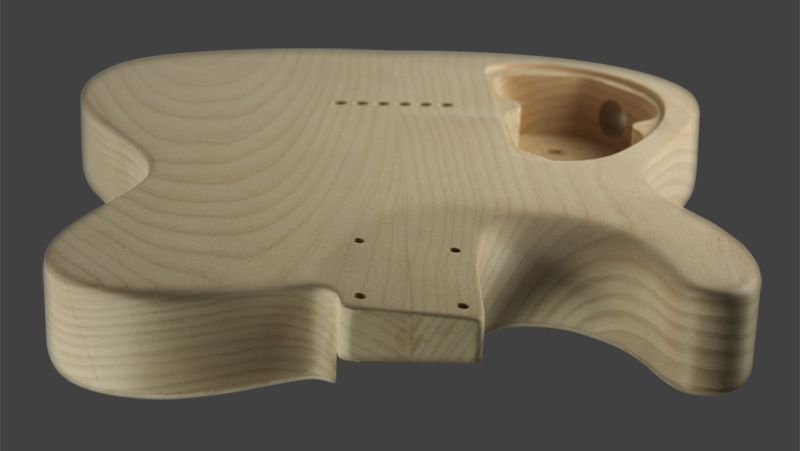

Contoured Heel
The Heel Contour option tapers the lower horn and reduces the thickness of the heel, which makes playing in the upper frets faster and more comfortable.
- Requires a standard 4-Bolt Neck Plate, sold seperately.
- Most of our carved-top bodies come standard with the Heel Contour at no extra charge.
- Warmoth's Contoured Heel Neck Screw Set is required! See below.
- Not available on Double Neck bodies.

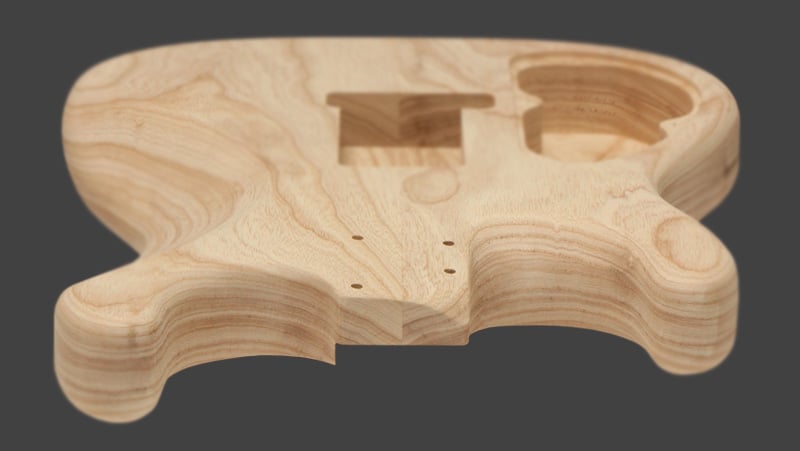

Custom Sculpted Heel
The Custom Sculpted Heel is our Contoured Heel option with addition of the lower corner being rounded off for maximum comfort and upper fret acces. It is compatible with Fender American Pro II necks and heel plates.
- Requires a Sculpted Heel plate, sold seperately.
- Compatible with Fender American Pro II necks and heel plates.
- Warmoth's Contoured Heel Neck Screw Set is required! See below.
- Compatible with Vintage, Vintage/Modern, and Modern Tiltback constuction necks only. Not compatible with Warmoth Modern Construction necks.
- Not available on Double Neck bodies.

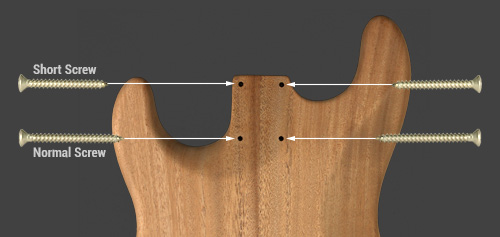

Contoured Heel Screws

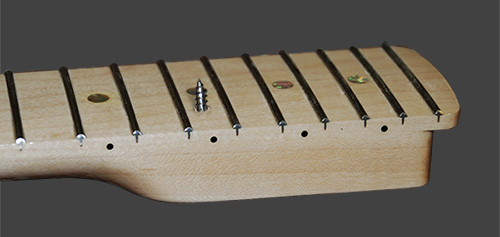

- The Contoured Heel and Custom Sculpted Heel options are NOT compatible with standard neck screws. Using them will result in damage to the fretboard. For the best results, please use the Contoured Heel Neck Screw Set available in our hardware section.
- The Contoured Heel option is NOT compatible with standard neck screws. Using them will result in damage to the fretboard. For the best results, please use the Contoured Heel Neck Screw Set available in our hardware section.
