Guitar Jack Routs
Top Jack Routs

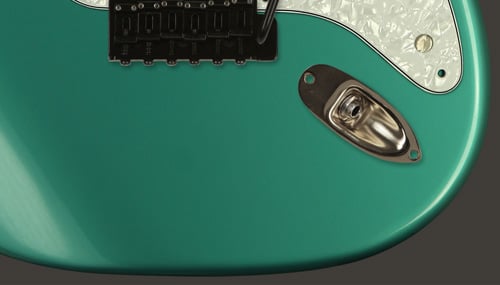

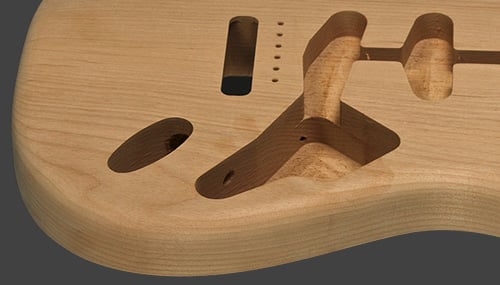

Strat® Top Jack
This jack rout is compatible with:
- Strat® Top jack plates only.
Strat® Top Jack w/ Standard Holes
This jack rout is compatible with:
- Strat® Top jack plates only.
- Includes pre-drilled standard mounting holes.
Standard mounting holes fit the Strat® Top jack plates Warmoth sells, as well as the vast majority of other plates, but non-standard jack plates do exist. If you plan to use a Strat® Top jack plate purchased elsewhere, be sure to check dimensions for proper fitment.
Side Jack Routs

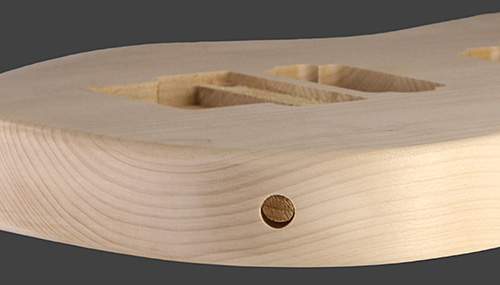

1/2" (13mm)
This jack rout is compatible with:

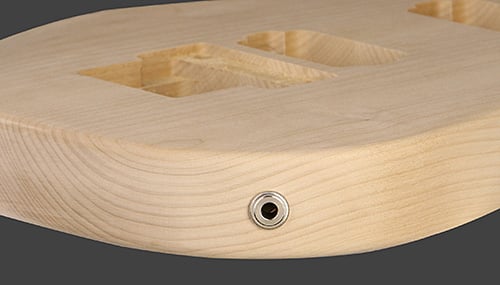

- Deep panel jacks only.

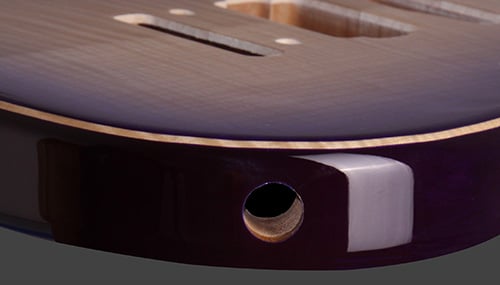

3/4" (19mm)
This jack rout is compatible with:

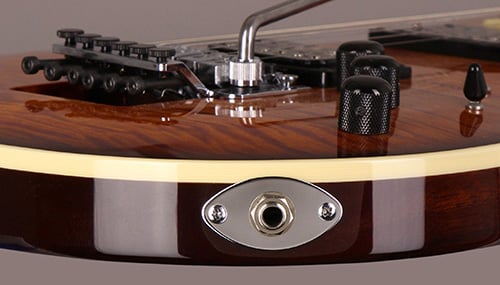

- Football jack plates.

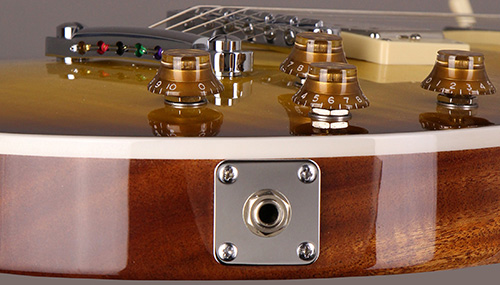

- Square jack plates, on bodies with a 3/16" edge radius.
This rout it typically used on bodies with a 3/8" or 1/2" edge radius.
7/8" (22mm)
This jack rout is compatible with:

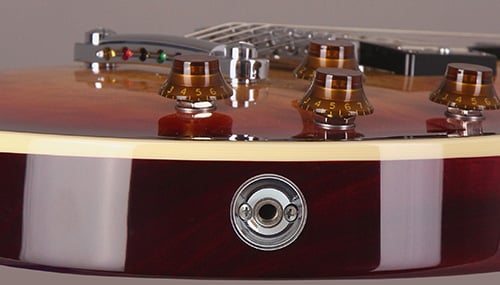

- Electrosockets jack plates.
- Football jack plates.
- Square jack plates, on bodies with a 3/16" edge radius.
This rout is can be ordered on any body with a 3/16" edge radius. It is also available on bodies with 1/2" or 3/8" edge radii, as long as it is ordered before the finish is applied.
