Guitar Body Lam Tops

Laminate Tops (or Lam Tops) are thin sheets of highly figured or exotic wood that allow you to enhance the look of your instrument while preserving the tone of the underlying core wood.

Bookmatched Lam Tops

Most Lam Tops are created in "bookmatch" fashion. This is accomplished by first sawing a plank lengthwise. The resulting halves are opened like a book and glued in the center. This yields a symmetrical pattern along the body centerline. Occasionally laminate tops are created with a single piece of wood, but it is rare.

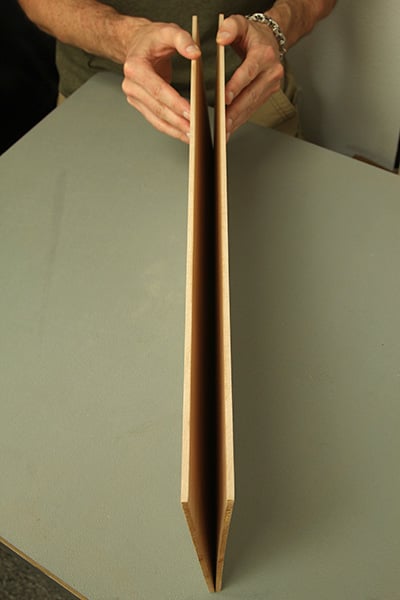

Bookmatched LamTop

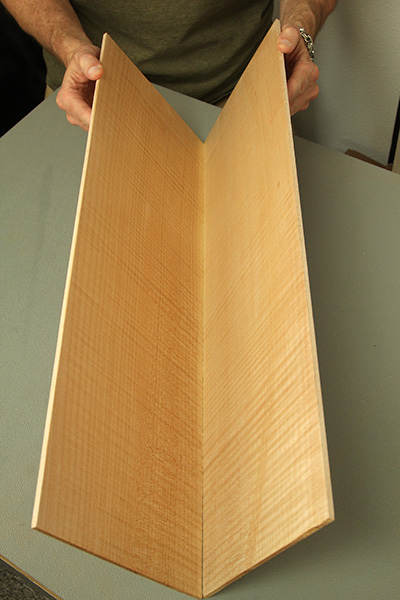

Bookmatched LamTop 2

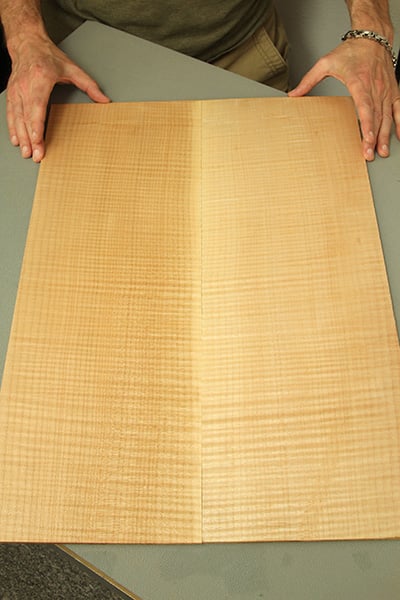

Bookmatched LamTop 3

The Lam Top is then affixed to the body core wood. Because the Lam Top is only 1/8" thick the body will retain the tone signature of the core wood. The neck and the bridge will still be anchored to the core wood.

Drop Tops

A Drop Top is a 1/8" Lam Top that has been formed to follow the downward curve of a guitar body's Forearm Contour. This process, developed by Warmoth, yields beautiful, symmetrical laminate tops with forearm contours identical to the original shape.

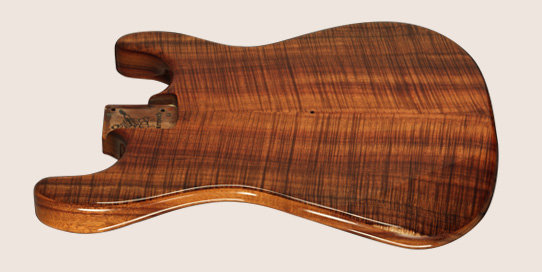

Drop Top

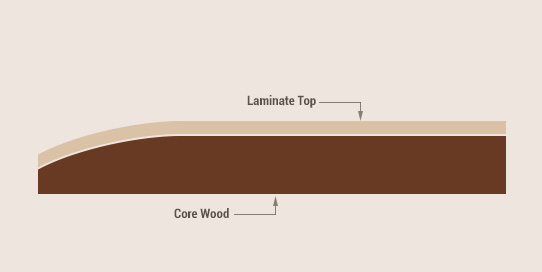

Drop Top Diagram

Double Lam Tops

A Double Lam Top (DL Top) is a figured 1/16" Lam Top that has been formed to follow the contours of a carved, non-figured sub-laminate. Together they form the DL Top, which is then applied to the body core. Binding around the perimeter covers the seams.

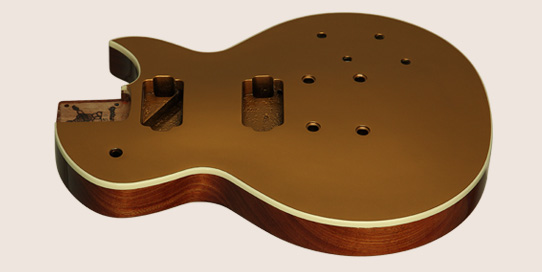

DL Top

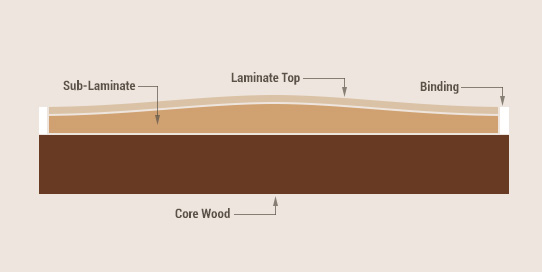

DL Top Diagram

In order to preserve their tonal signature, DL Top woods are typically of the same species. Carved-top bodies like the Regal, VIP, and Velocity are created using this technique.

Traditionally the contours of Carved-top laminates were cut from a single piece of figured wood 3/4" thick. However, sourcing woods in this thickness with high-quality, consistent grain figure has become difficult and costly. DL Tops offer an equally beautiful look, with better symmetry than traditional Single Lam Carve-tops, while helping to reduce costs and conserve rare woods.

Laminate Accent Lines

A Laminate Accent is a very thin line around the perimeter of a Laminate Top guitar body that creates a pleasing, bordered look. It is created by sandwiching a thin (0.030") layer of contrasting wood between the body core and Laminate Top. Once the body is shaped and sanded, this thin layer forms a perfect line around the perimeter of the Laminate Top.

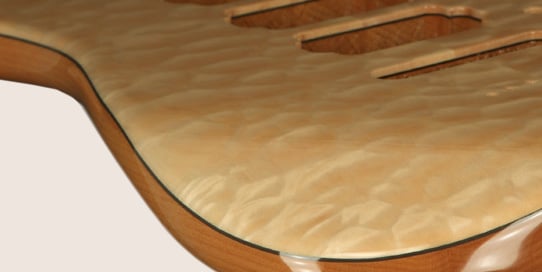

Dark Accent Line
Dark Accent Line Diagram

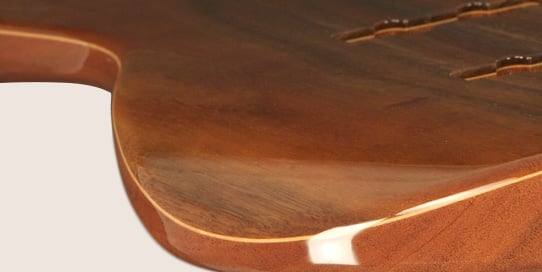

Light Accent Line

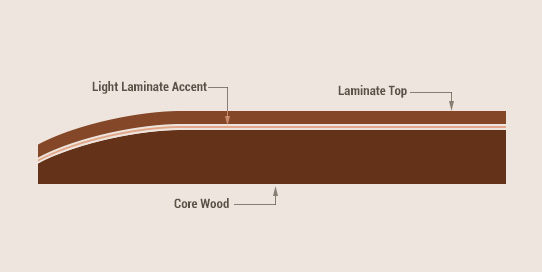

Light Accent Line Diagram
