Guitar Bridge Routs

Tremolo Bridge Routs

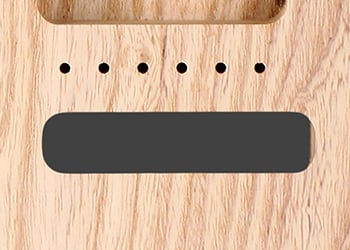

6-Hole Vintage Tremolo
6-Hole Vintage Trem
Vintage 6-Hole Trem Rout
Vintage 6-Hole Trem

This rout fits the 6-Hole Vintage Tremolo unit.


6 Hole Vintage Tremolo Diagram
  • Mounting screw span is 2.2" (55.9mm)
  • Mounting screw hole diameter: 1/8" (3mm).

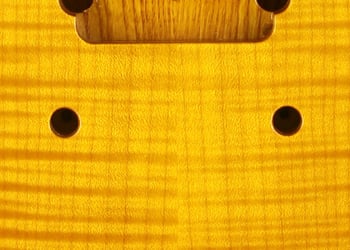

Gotoh 510 Tremolo
Gotoh 510 Trem
Gotoh 510
Gotoh 510 Trem

This rout fits the Gotoh 510-TS-FE1 Tremolo unit.


Gotoh 510 Tremolo Diagram
  • This rout also fits the Wilkinson 1302P tremolo, but you must use the Gotoh studs Warmoth sells.
  • Mounting stud span is 2.2" (55.9mm)
  • Drilled for .388" (10mm) diameter insert.
  • Rout fits most other Gotoh 510-series tremolo units as well.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

American Standard Fender® Tremolo
Standard Strat® Trem
Standard Strat®
American Standard Trem

This rout fits the American Standard Fender® Tremolo unit.


American Standard Strat® Diagram
  • Mounting stud span is 2.2" (55.9mm)
  • Drilled for .375" (10mm) diameter insert.
  • Not available on Tele® Deluxe and 72 Thinline bodies.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.

Wilkinson VS100 Tremolo
Wilkinson Trem
Wilkinson Trem
Wilkinson Trem

This rout fits the Wilkinson VS100 Tremolo unit.


Wilkinson Tremolo Diagram
  • This rout does NOT fit the Wilkinson 1302P tremolo.
  • Mounting stud span is 2.15" (54.5mm)
  • Drilled for .382" (10mm) diameter insert.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

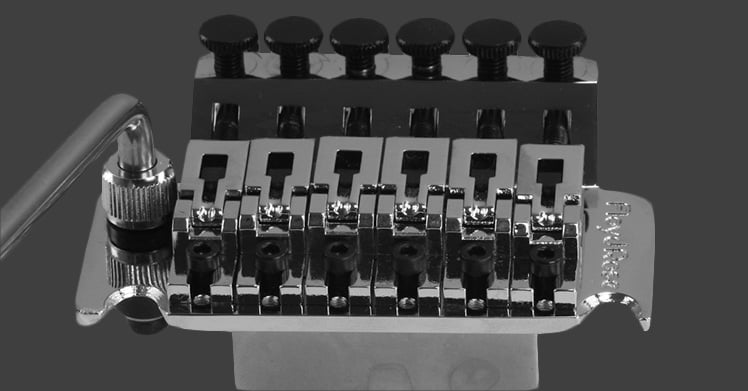

Floyd Rose Style Tremolo
Original Floyd
Original Floyd
Floyd Rose Trem

This rout fits the Floyd Rose Tremolo unit.


Floyd Tremolo Diagram
  • 2.913" (73.99mm) mounting stud span
  • Drilled for .390" (10mm) diameter inserts.
  • Angled neck pocket recommended.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

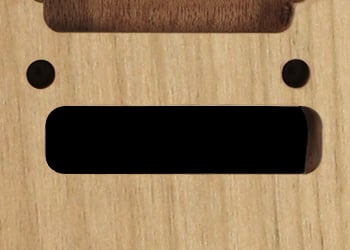

7-String Original Floyd Rose
7-String Floyd Rose
7-String Floyd Rose
Floyd Rose 7 String Trem

This rout fits the 7-String Floyd Rose Tremolo unit.


7-String Floyd Tremolo Diagram
  • 3.33" (84.6mm) mounting stud span
  • Drilled for .390" (10mm) diameter insert.
  • Angled neck pocket recommended.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.

Recessed Tremolo Bridge Routs

Original Floyd Rose Recessed
Recessed Original Floyd
Recessed Original Floyd
Recessed Floyd Rose Trem

This rout fits the Original Floyd Rose Tremolo unit.


Recessed Floyd Tremolo Diagram
  • 2.913" (73.99mm) mounting stud span.
  • Drilled for .390" (10mm) diameter inserts.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

Schaller Floyd Rose Recessed
Recessed Schaller Floyd
Recessed Schaller Floyd
Recessed Schaller Floyd Rose Trem

This rout fits the Schaller Floyd Rose Tremolo unit.


Recessed Schaller Floyd Tremolo Diagram
  • 2.913" (73.99mm) mounting stud span.
  • Drilled for .390" (10mm) diameter inserts.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

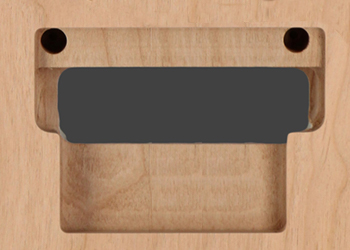

7-String Original Floyd Rose Recessed
7-String Floyd Rose
7-String Floyd Rose
Recessed Floyd Rose 7 String Trem

This rout fits the 7-String Floyd Rose Tremolo unit.


Recessed 7-String Floyd Tremolo Diagram
  • 3.33" (84.6mm) mounting stud span.
  • Drilled for .390" (10mm) diameter inserts.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.

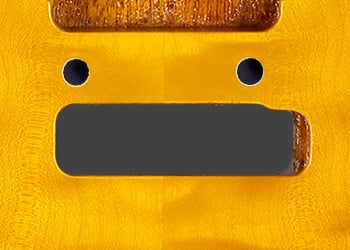

Wilkinson Semi-Recessed
Semi-Recessed Wilkinson Trem
Semi-Recessed Wilkinson Trem
Recessed Wilkinson Trem

This rout fits the Wilkinson VS100 Tremolo.


Recessed Wilkinson Tremolo Diagram
  • Mounting stud span is 2.2" (55.9mm)
  • Drilled for .382" (10mm) diameter insert.
  • This rout increases the depth under the back end of the bridge only, for a greater range of motion. It does not encompass the entire tremolo unit, or allow it to be recessed into the body. The tremolo unit must be set up at the normal height.
  • For a small charge, Warmoth can install the mounting studs. Simply choose the Stud Mount option when ordering.
  • Not available on Tele® Deluxe and 72 Thinline bodies.

Trem Spring Cavity
Trem Spring Cavity Diagram
Rear Trem Spring Cavity

All the tremolo and recessed tremolo bridge routs listed above come with the same spring cavity rout in the back of the guitar body.

  • The pilot-holes for the spring-claw screws are pre-drilled for easy installation.

Flat-Mount Hardtail Bridge Routs

(Ground wire holes drilled to all Strat® hardtail bridges). The back side of these "vintage bridge" bodies are drilled 5/16" for the string anchor ferrules.

Vintage Tele®
Vintage Tele
Vintage Tele
Vintage Tele

This rout fits the Vintage Tele® bridge.


Vintage Tele® Diagram
  • Screw and string-through holes are 1/8" (3.18mm) diameter.
  • This pattern matches the vintage "ash tray" style bridge as well as our Vintage Tele® Bridge and Gotoh brand replacements, (both standard and humbucker versions).

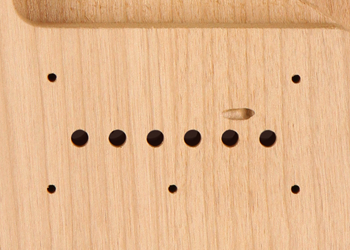

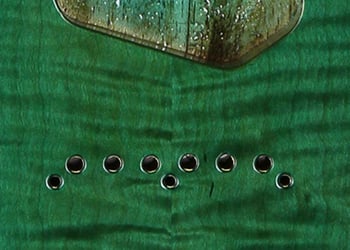

American Standard Tele®
American Standard Tele
American Standard Tele
American Standard Tele

This rout fits the Fender American Standard Tele® bridge.


American Standard Tele® Diagram
  • Screw and string-through holes are 1/8® (3.18mm) diameter.
  • This rout is compatible with the Fender American Standard Tele® bridge, which we do not sell.

Vintage Spaced Strat® Flatmount
Vintage Strat Flat Mount
Vintage Strat Flat Mount
Vintage Strat

This rout fits the Vintage Spaced Strat® Flat Mount bridge.


Vintage Strat® Diagram
  • Screw and string-through holes are 1/8" (3.18mm) diameter.

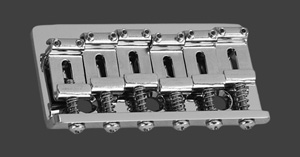

Narrow Spaced Strat® Flatmount
Narrow Spaced Strat
Narrow Spaced Strat
Narrow Strat

This rout fits the Narrow Spaced Strat® Flatmount bridge.


Narrow Spaced Strat® Diagram
  • The mounting holes are identical to the Vintage-Style Strat®/American Standard Strat® flat mount bridge, but the string through holes are drilled larger.

American Standard Flatmount
American Standard Strat
American Standard Strat
Vintage Strat

This rout fits the Fender® American Standard Flat Mount bridge.


Standard Strat® Diagram
  • Screw and string-through holes are 1/8" (3.18mm) diameter.
  • This rout is not interchangeable with the Vintage Spaced Strat® Flatmount rout. The dimensions are slightly narrower.

Vintage Strat® - String-Through Holes Only
String Through Holes
String Through Holes
String Through Holes

This rout fits any generic hardtail bridge with string holes in the standard Strat® position.


Vintage Strat® String-through Diagram
  • String-through holes are 1/8" (3.18mm) diameter.
  • Use these string-through holes to properly locate and align your bridge, and then drill your mounting holes.

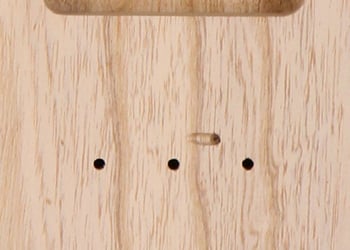

Schaller 475
Schaller 475
Schaller 475
Schaller 475

This rout fits the Schaller 475 bridge.


Schaller 475 Diagram
  • String-through holes are 1/8" (3.18mm) diameter.

Gotoh 12-String
Gotoh 12-String
Gotoh 12-String
Gotoh 12 String

Compatible with the Gotoh 12-String bridge.


Gotoh 12-String Diagram
  • String-through holes are .188" (4.78mm) diameter.
  • Mounting holes are .125" (3.18mm) diameter.

Post-Mount Hardtail Bridge Routs

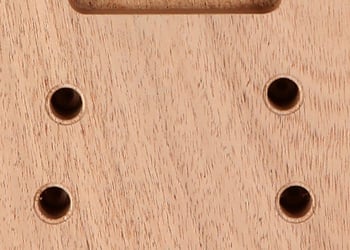

Tune-O-Matic Bridge and Stop Tailpiece
TOM STP Bridge Rout
TOM STP Bridge Rout
TOM STP Bridge

This rout fits Tune-O-Matic bridges and tailpieces.


TOM STP Bridge Rout
  • Drilled for .430" (11mm) diameter inserts.
  • Notice that the Tune-o-Matic section of the rout is slightly diagonal. This helps to achieve proper intonation.
  • For a small charge Warmoth can install the mounting studs. Simply choose the Stud Install option when ordering.

Recessed Tune-O-Matic - Angled
Recessed TOM Angled
Recessed TOM Angled
TOM Bridge

This rout fits Tune-O-Matic bridges.


Recessed TOM Angled Bridge Rout
  • Due to the bridge recess, a neck pocket angle is not required.
  • Available on Flat Top models only.
  • The strings go through our top-string-through ferrules and anchor in our standard guitar string ferrules in the back of the body.
  • For a small charge Warmoth can install the mounting studs. Simply choose the Stud Install option when ordering.

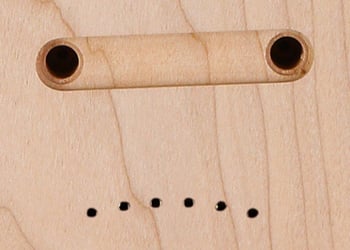

Recessed Tune-O-Matic - Arched
Recessed TOM Arched
Recessed TOM Arched
TOM Bridge

This rout fits Tune-O-Matic bridges.


Recessed TOM Arched Bridge Rout
  • Due to the bridge recess, a neck pocket angle is not required.
  • Available on Flat Top models only.
  • The strings go through our top-string-through ferrules and anchor in our standard guitar string ferrules in the back of the body.
  • For a small charge Warmoth can install the mounting studs. Simply choose the Stud Install option when ordering.

Recessed Tune-O-Matic - Staggered
Recessed TOM Staggered
Recessed TOM Staggered
TOM Bridge

This rout fits Tune-O-Matic bridges.


Recessed TOM Staggered Bridge Rout
  • Due to the bridge recess, a neck pocket angle is not required.
  • Available on Flat Top models only.
  • The strings go through our top-string-through ferrules and anchor in our standard guitar string ferrules in the back of the body.
  • For a small charge Warmoth can install the mounting studs. Simply choose the Stud Install option when ordering.

Gotoh Wraparound Bridge
Gotoh Wraparound Bridge Rout
Gotoh Wraparound Bridge Rout
Gotoh Wraparound Bridge

This rout fits the Gotoh Wraparound bridge.


Gotoh Wraparound Bridge Rout
  • Stud span is 3.23" (82mm).
  • Insert holes are drilled .421" (11mm) diameter.
  • For a small charge Warmoth can install the mounting studs. Simply choose the Stud Install option when ordering.


Other Bridge Routs

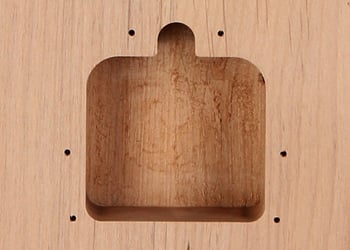

Jazzmaster® Tremolo
Jazzmaster Bridge Rout
Jazzmaster Bridge Rout
Jazzmaster Bridge

The rout fits the Jazzmaster® Tremolo unit


Jazzmaster Bridge Rout
  • Commonly used on both the Jazzmaster® and Jaguar bodies.

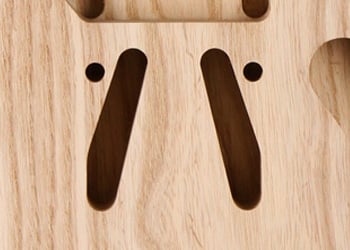

Mustang Tremolo
Mustang Tremolo Rout
Mustang Tremolo Body
Mustang Tremolo Plate

The rout fits the Mustang Tremolo unit


Mustang Tremolo Rout Diagram
  • Commonly ordered on Mustang and Jagstang bodies.

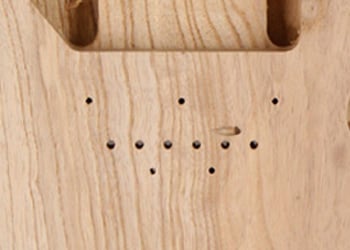

Mustang Toronado Hardtail
Toronado Bridge Rout
Toronado Bridge Body
Toronado Bridge

The rout fits a Toronado hardtail bridge.


Toronado Bridge Rout Diagram
  • Commonly ordered on Mustang or Jagstang bodies.

Custom Bridge Routs

Warmoth does not stock or special order the bridges listed below, but we can rout for them.

Please call for assistance. A custom charge will apply.

  • Non-Fine Tuner Floyd Rose Tremolo (stud mount only, and requires a Warmoth pickguard with custom bridge cut)
  • Bladerunner Super-Vee Six-Screw Mount Tremolo (uses our standard 6-Hole Vintage tremolo rout)
  • Bladerunner Super-Vee Two-Post Mount Tremolo (uses our American Standard Fender tremolo rout)
  • Babicz Full-Contact TOM and Stop Tailpiece
  • Carvin FTG Hardtail
  • Fishman Tele 101 Bridge
  • Fishman Powerbridge Hardtail
  • Fishman TOM
  • Fishman TSV Powerbridge
  • Gibson B-0510-010 SG Style TOM

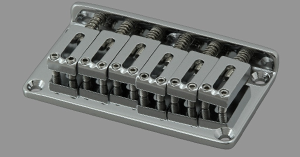

  • Gotoh 101
  • Hipshot Tremolo

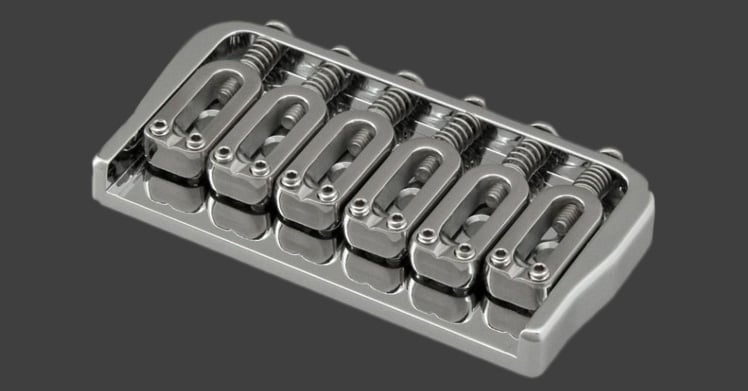

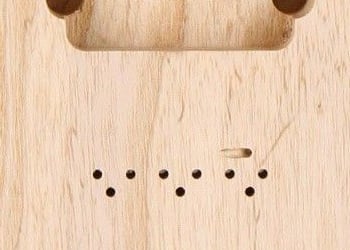

  • Hipshot Flat Mount SB 5105-010
  • Kahler Tremolo
  • LR Baggs TOM
  • LR Baggs X Trem
  • LR Baggs Hardtail
  • Schaller 494 Stop Tailpiece w/ Fine Tuners
  • Schaller STM Model 451, 452 or 453

Warmoth does not stock these bridges, and has no way of knowing when specifications or dimension change. For this reason, you must send your bridge to us when requesting a custom bridge rout. Please contact sales@warmoth.com for more information.
