Bass Bridge Routs

  • Bass Bridge Routs

Bass Bridge Routs

4-String Bridge Routs

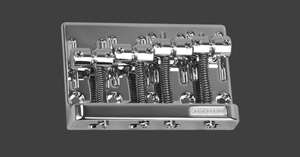

Gotoh 201

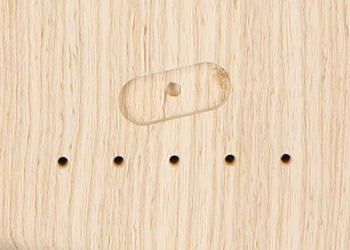

Gotoh 201 Bridge Rout
Gotoh 201 Bridge Rout

This rout fits the Gotoh 201 bridge.


Gotoh 201 Diagram
  • The Gotoh 201 bridge rout is our standard rout for P and J style bodies.
  • For top-loading bridges.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.
  • Also fits Leo Quann BadAss II and Babicz Full Contact 4-string bridges.

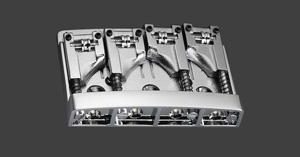

Schaller 463

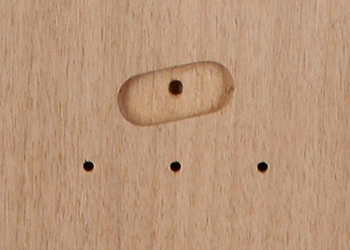

Gotoh 463Bridge Rout
Gotoh 463Bridge Rout

This rout fits the Schaller 463 bridge.


Schaller 463 Diagram
  • For top-loading bridges.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.

2TEK (4-String)
2TEK Bridge Rout
2TEK Bridge Rout

This rout fits the 2TEK 4-String bridge.


Front View

2TEK Bridge Rout Diagram
  • Strings load thru bridge.

Back View

2TEK Bridge Rout Diagram
  • This rout has a recessed lip in the back, so that the mounting plate sits flush with the body.

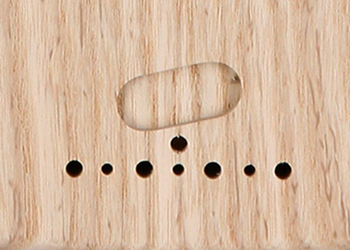

Badass Bass III
Badass III Bridge Rout
Badass III Bridge Rout

This rout fits the Badass Bass III bridge.


Bad Ass Bridge Rout Diagram
  • Topload or string-thru body.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.

5-String Bridge Routs

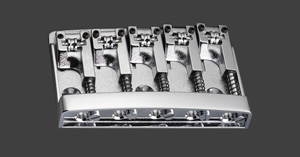

Schaller 496

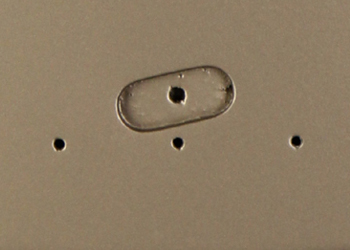

Schaller 496 Bridge Rout
Schaller 496 Bridge Rout

This rout fits the Schaller 496 bridge.


Schaller 496 Bridge Diagram
  • Topload only.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.
  • Available on Deluxe 5 bodies only.
  • Adjustable string spacing from 2-1/2" to 2-11/16" (16mm - 17mm).

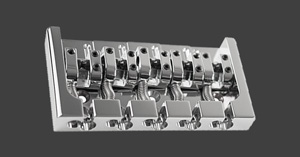

Hipshot A (5-String)

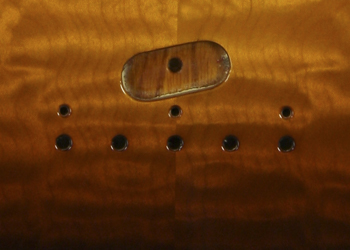

Hipshot A 5-String Bridge Rout
Hipshot A 5-String Bridge Rout

This rout fits the Hipshot A 5-String bridge.


Hipshot A 5-String Diagram
  • Topload or string thru body.
  • 2-3/4" string spacing (.687" or 17.5mm).
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.
  • Available on Deluxe 5 or Gecko 5 Narrow bodies only.

Hipshot A (5-String Wide)

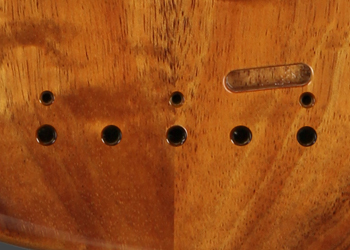

Hipshot A 5-String Wide Bridge Rout
Hipshot A 5-String Wide Bridge Rout

This rout fits the Hipshot A 5-String Wide bridge.


Hipshot A 5-String Wide Diagram
  • Topload or string thru body.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.
  • 3" string spacing (.750" or 19mm).
  • Available on Gecko 5 Medium or Wide bodies only.

2TEK (5-String)
2TEK 5-String Bridge Rout
2TEK 5-String Bridge Rout

This rout fits the 2TEK 5-String Narrow bridge.


Front View

2TEK Bridge Rout Diagram
  • This bridge has a 2-5/8" total string span.
  • Strings load thru bridge.
  • Available on Deluxe 5 bodies only.

Back View

2TEK Bridge Rout Diagram
  • This rout has a recessed lip in the back, so that the mounting plate sits flush with the body.

2TEK (5-String Wide)
2TEK 5-String Wide Bridge Rout
2TEK 5-String Wide Bridge Rout

This rout fits the 2TEK 5-String Wide bridge.


Front View

2TEK 5-String Wide Bridge Rout Diagram
  • This bridge has a 3" total string span. This is the widest recommended string span on Warmoth 5-string bodies. Wider spans will place the strings too near the edge of the fretboard.
  • Strings load thru bridge.
  • Available on Deluxe 5 top-routed bodies only.

Back View

2TEK Bridge Rout Diagram
  • This rout has a recessed lip in the back, so that the mounting plate sits flush with the body.

Badass Bass V
Badass V Bridge Rout
Badass V Bridge Rout

This rout fits the Badass V bridge.


Badass V Diagram
  • Topload or string thru body.
  • The ground wire channel is pre-drilled, with a recessed area under the bridge.
  • Available on Deluxe 5 bodies only.
  • This bridge features adjustable string spacing from 2-11/16" to 3-5/32" (17mm - 20mm). Our string-through holes are drilled at 19mm spacing. Adjusting the bridge wider than that is not recommended, as it will place the strings too near the edge of the fretboard.

6-String Bridge Routs

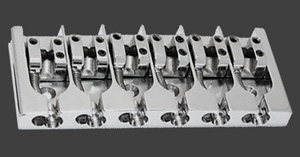

Hipshot A (6-String)

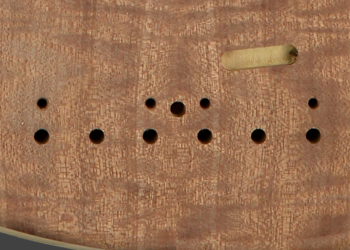

Hipshot A 6-String Bridge Rout
Hipshot A 6-String Bridge Rout

This rout fits the Hipshot A 6-string bridge.


Hipshot A 6-String Diagram
  • .656" string spacing (16.5mm).
  • Topload or string thru body.
  • The ground wire channel is pre-drilled.
  • Available on Gecko 6 bodies only.

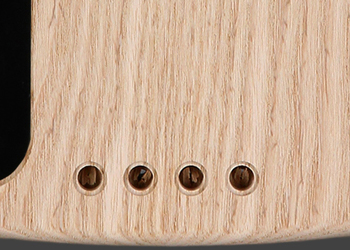

String-Through Holes

String-through Bridge Rout
String Through Bridge Rout

On bass bridge routs with a string-through option, the string-through holes are pre-drilled. The backs of the holes are routed to accept bass string ferrules.
