Wiring Diagrams for Guitar & Bass

Use the wiring diagrams below to assist you in the wiring of your guitar or bass.

Fender-style wiring

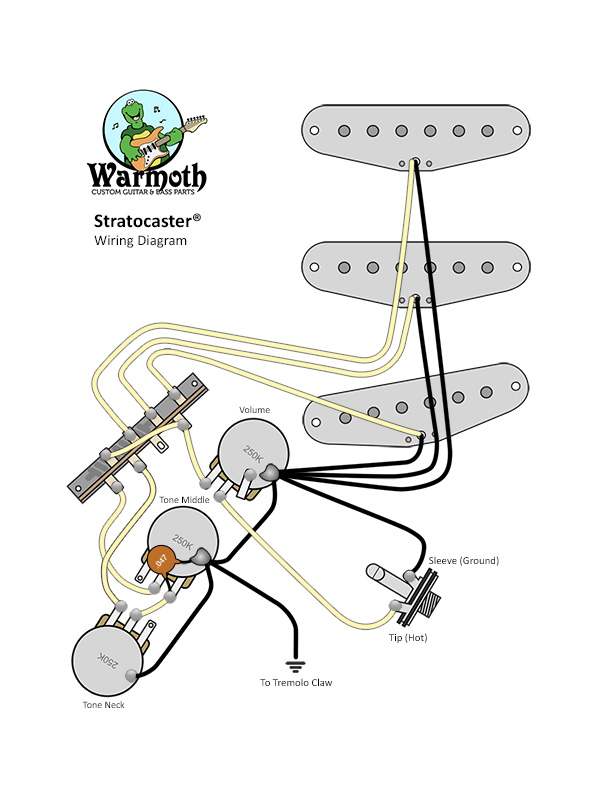

Strat® Style Wiring Diagram — S/S/S (Strat® Style)

Strat® Style Wiring Diagram — S/S/S (Strat® Style)

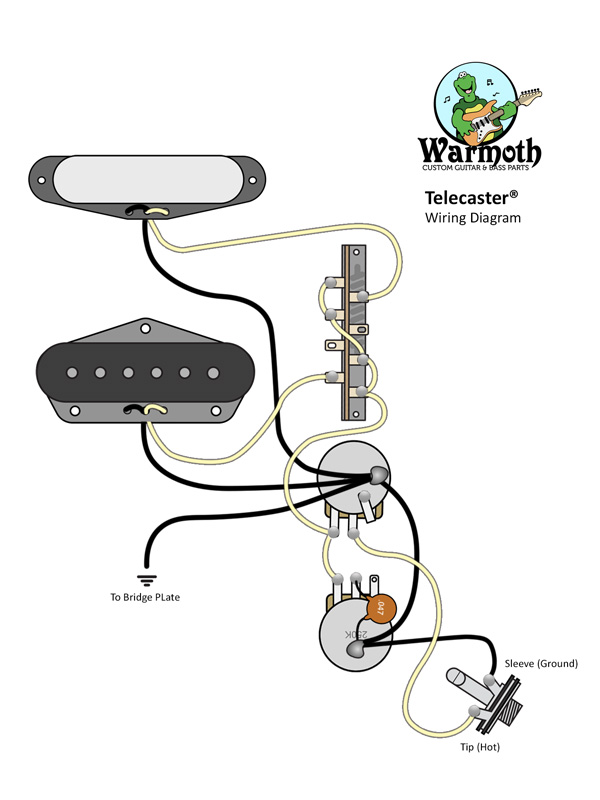

Tele® Style Wiring Diagram — T/x/T (Tele® Style)

Tele® Style Wiring Diagram — T/x/T (Tele® Style)

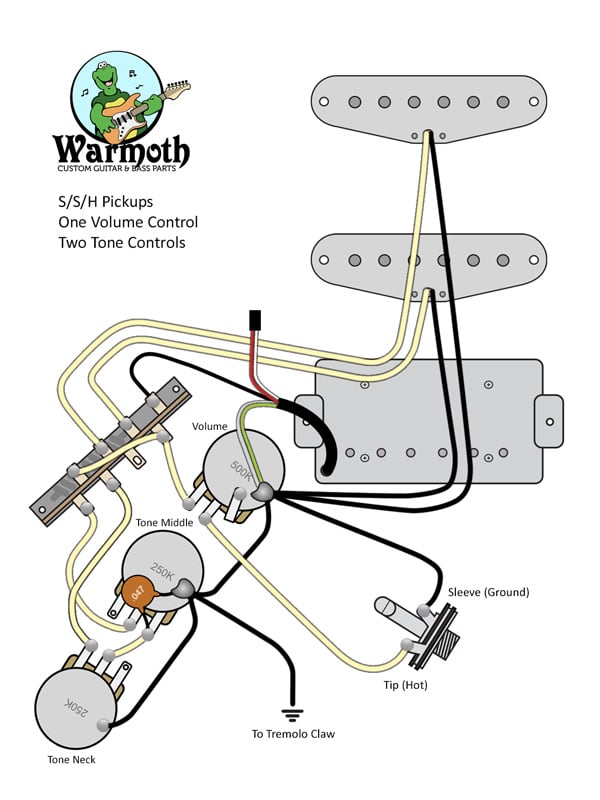

SSH Wiring — S/S/H

SSH Wiring — S/S/H

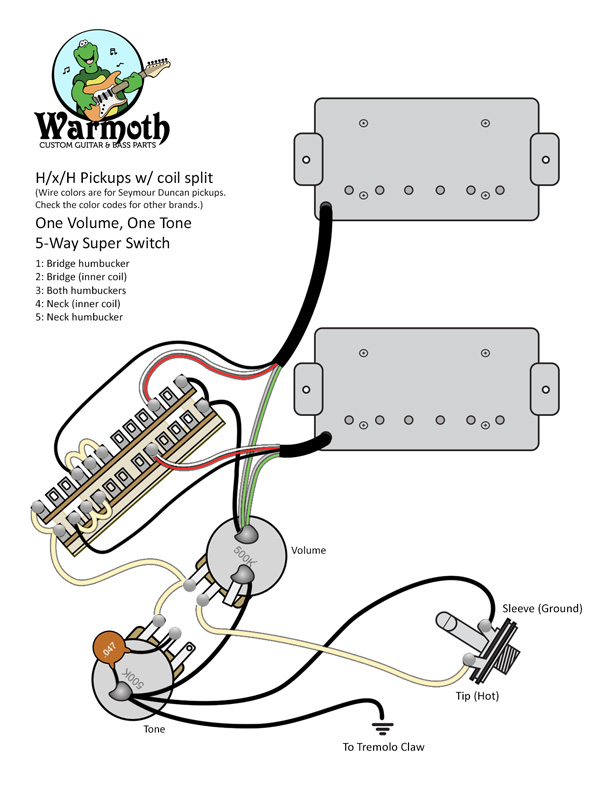

H/x/H with Coil Splitting

H/x/H with Coil Splitting

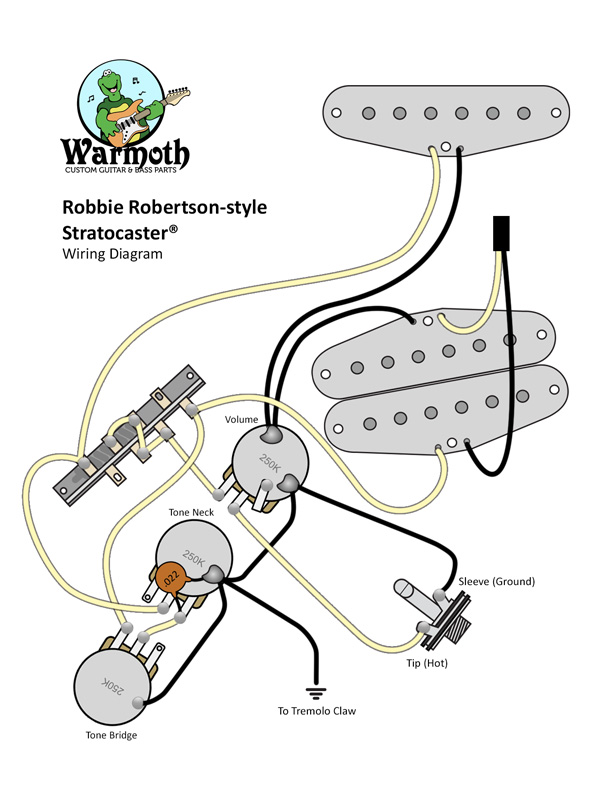

Robbie Robertson Style Wiring Diagram — Robbie Robertson style

Robbie Robertson Style Wiring Diagram — Robbie Robertson style

Gibson-style wiring

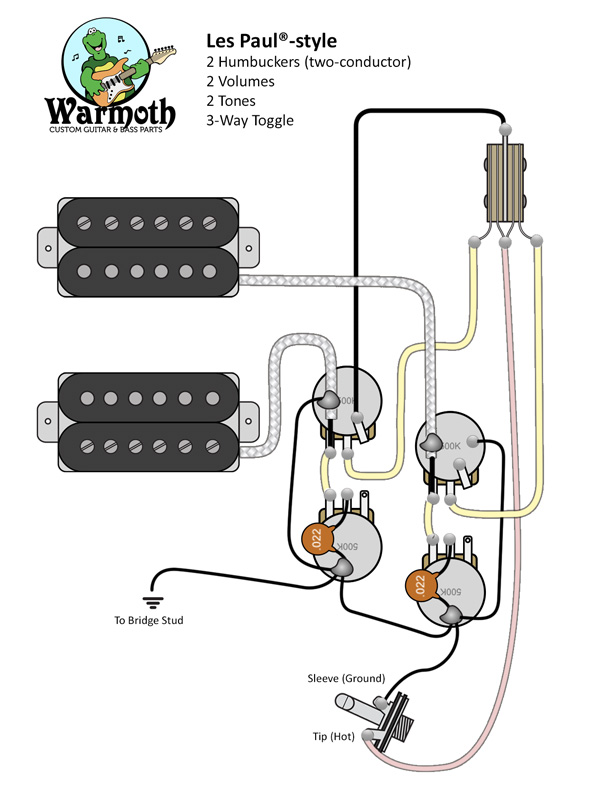

2-conductor humbuckers (Les Paul) — H/x/H (2-conductor)

2-conductor humbuckers (Les Paul) — H/x/H (2-conductor)

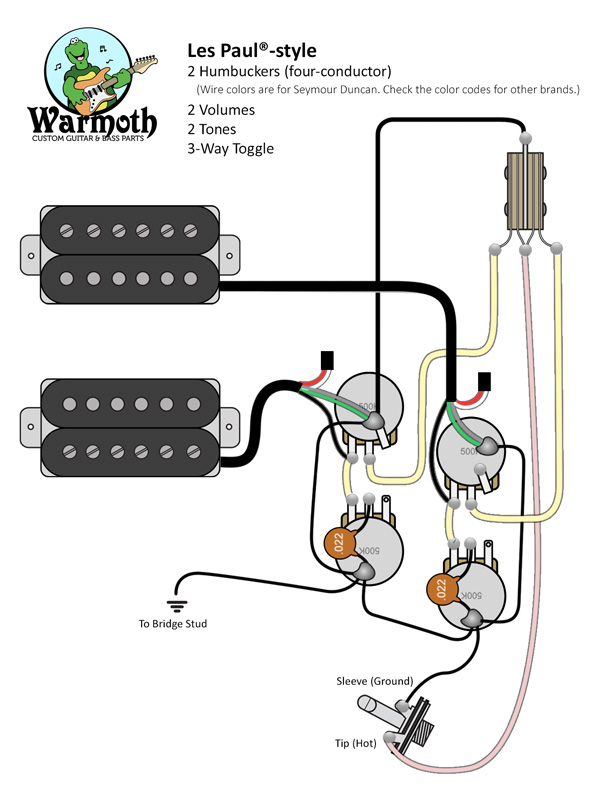

Les Paul 4-Conductor — H/x/H (4-conductor)

Les Paul 4-Conductor — H/x/H (4-conductor)

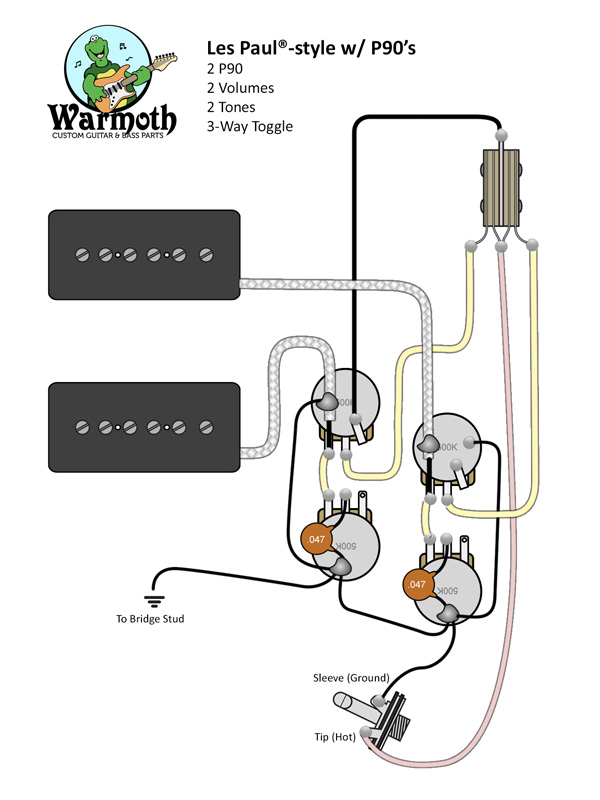

Two P-90's

Two P-90's

Other wiring

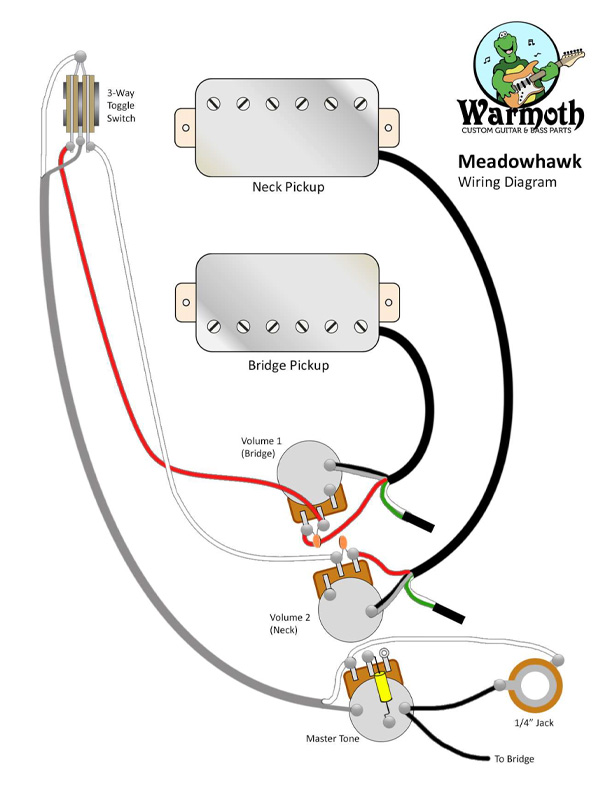

Meadowhawk Wiring Diagram — Warmoth Meadowhawk

Meadowhawk Wiring Diagram — Warmoth Meadowhawk

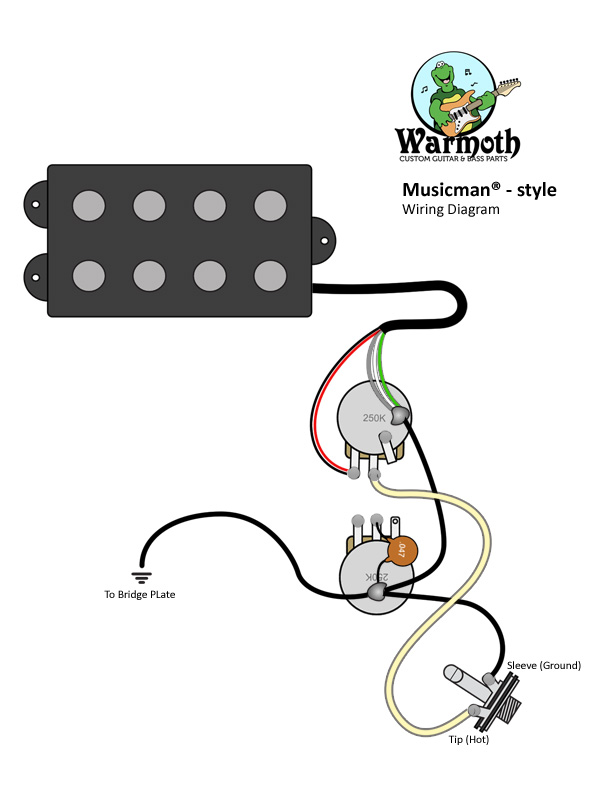

Bass

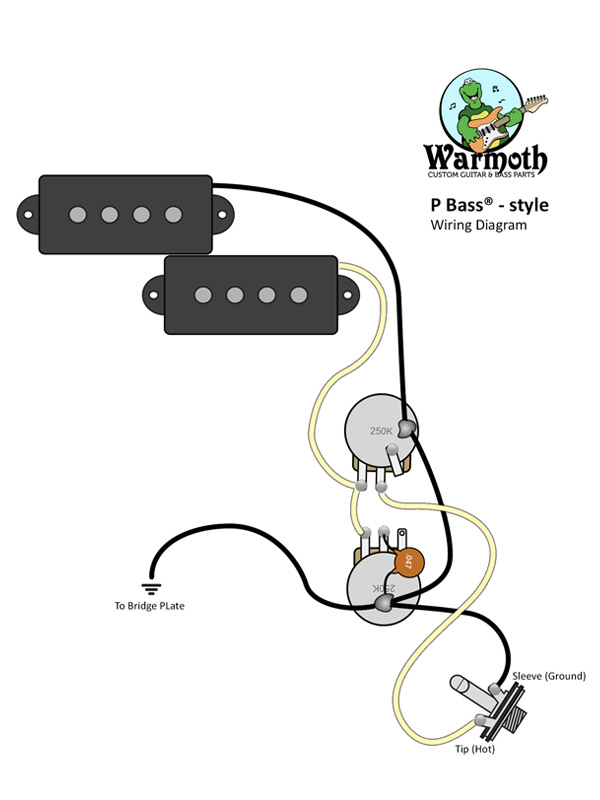

P Bass® Wiring Diagram — P Bass® Style

P Bass® Wiring Diagram — P Bass® Style

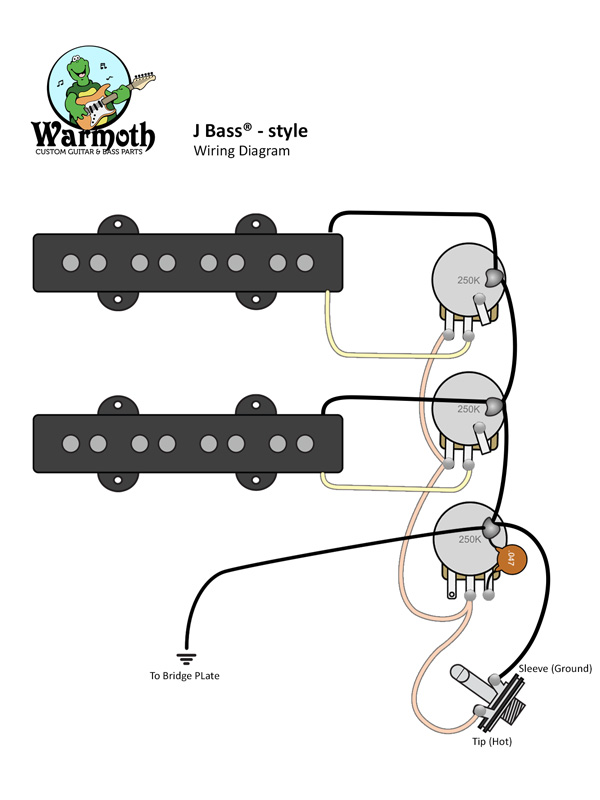

J Bass® Wiring Diagram — J Bass® Style

J Bass® Wiring Diagram — J Bass® Style
