Will it fit my Bass Body?

Warmoth bass parts adhere to Fender's® vintage/original neck-heel and neck-pocket dimensions, except when noted. Many other manufacturers also use these specs, but they are not universal - even among Fender® products. Accurate measurement is the only way to ensure compatibility of parts.

4-String Bass Necks

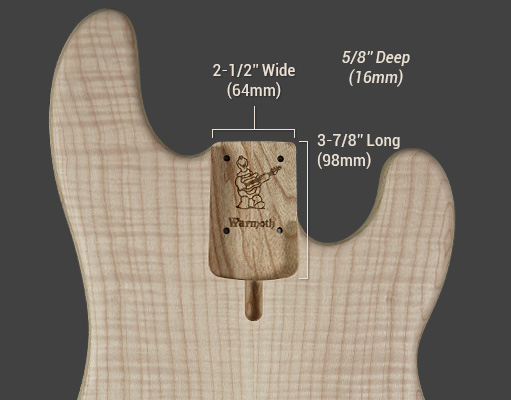

4-String Bass Neck Pocket
4-String Bass Neck Pocket Dimensions

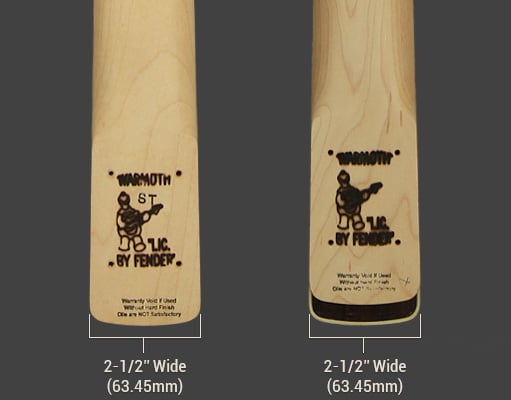

4-String Heels (20 & 21 Frets)
4-String Bass Neck Heel Dimensions
  • J Bass® and P Bass® heels and neck pockets have the same measurements and are interchangeable:
    • Width = 2-1/2" (63.45 mm)
    • Length = 3.875" (98.4 mm)
    • Pocket Depth = 5/8" (16 mm)
  • Warmoth does not offer bass necks or neck pockets with a squared Tele®-style heel shape.

5-String Bass Necks

Warmoth's Deluxe 5 replacement bass necks adhere to the specs and dimensions of Fender's® original 4-bolt American Deluxe 5 Bass. We do not offer a 5-bolt configuration.

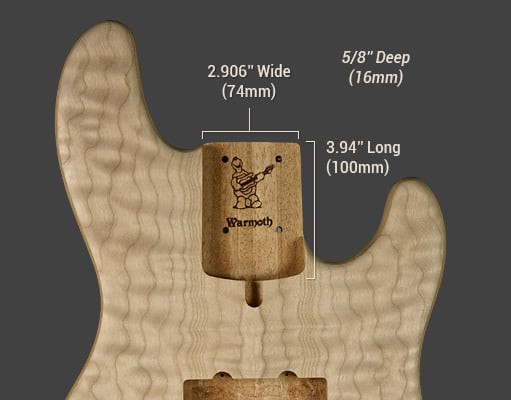

Deluxe 5 Bass Neck Pocket
Deluxe 5 Bass Neck Pocket Dimensions

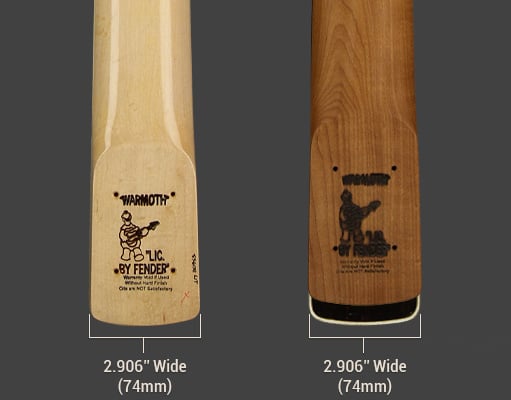

Deluxe 5 Heels (20 & 21 Frets)
Deluxe 5 Bass Neck Heel Dimensions
Deluxe 5 Bass neck heels and neck pockets have the same measurements and are interchangeable:
  • Width = 2.906" (74 mm)
  • Length = 3.94" (100 mm)
  • Pocket Depth = 5/8" (16 mm)

J Bass® 5 MIM Bass Necks

The J Bass® 5 MIM neck was patterned after the Fender® Made in Mexico Standard 5 bass.


Other Bass Necks

Warmoth's 30" and 32" Short Scale Bass necks are compatible with Warmoth Short Scale Bass bodies only.

Warmoth's Gecko bass necks are compatible with Warmoth Gecko bodies only.


Known Incompatibilities

The following bass models are known to be incompatible with Warmoth replacement bodies and necks:

  • Music Man Basses®
  • G & L Basses®
  • P Bass® Deluxe
  • J Bass® Deluxe
  • P Bass® Special
  • P Bass® "Lyte"

If you have compatibility questions regarding a specific guitar neck or body, please contact our Parts Tech for assistance by emailing partstech@warmoth.com or calling (253) 845-0403.
