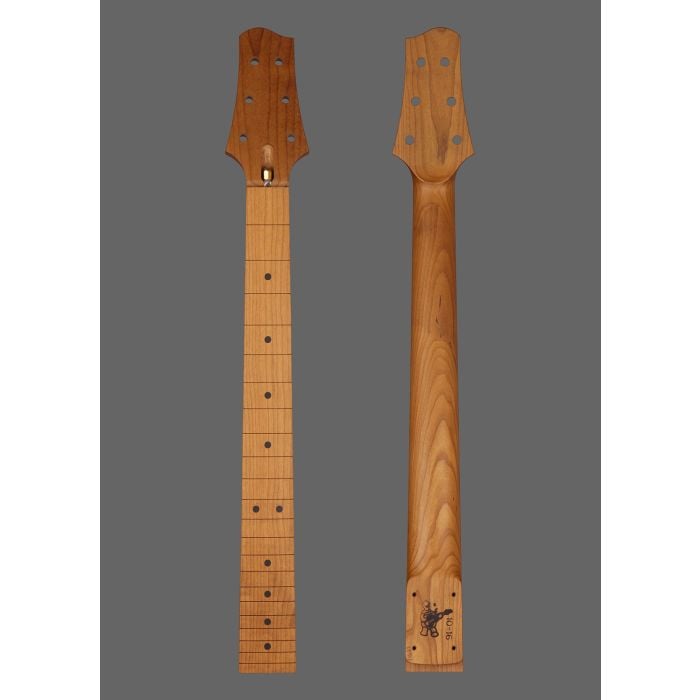

Vortex Guitar Neck
SKU
MN-3646
Tiltback Construction
- Model
- Vortex Guitar Neck
- SKU
- MN-3646
- Description
- Vortex Guitar Neck
Included:
| Option Name | Option Value |
|---|---|
| Construction | Modern Tiltback |
| Shaft Wood | Roasted Maple |
| Fretboard Wood | Roasted Maple |
| Nut Width | 1-5/8" (41mm) - Narrow |
| Right / Left Handed | Right-Handed |
| Neck Back Profile | Standard Thin |
| Fretboard Radius | 10" - 16" Compound |
| Number of Frets | 22 |
| Inlay Shape | Standard Dots |
| Inlay Material | Black |
| Side Dots | Black Side Dots |
| Mounting Holes | Standard 4-Bolt |
| Neck Heel Shape | Strat® Shape |
The Vortex neck features a 3+3 headstock, with symmetrically aligned tuner reams. It is built using Warmoth's Modern Tiltback construction, which features a scarf joint and volute for extreme strength, and a truss rod that adjusts at the headstock. Choose from our full range of customizable options, including woods, fret wire, inlays, nut widths, and fretboard radii, for a neck that looks and plays exactly the way you want it to.
Vortex Neck Features
- Your choice of back contours
- Huge range of wood options
- Neck mounting holes are pre-drilled for easy assembly
- Your choice of fret size and material
- Your choice of fretboard radii
- 2-3/16" (56mm) heel fits any body with vintage/original USA Strat® specs
- Modern Tiltback construction
