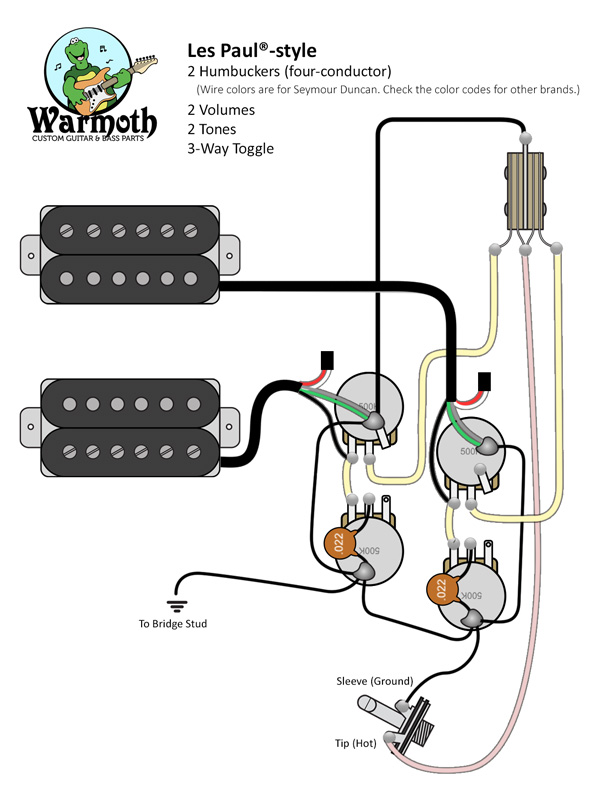

Les Paul Style Wiring Diagram for 4-Conductor pickups

The pickup wire colors in this diagram are for Seymour Duncan pickups. If you are using another brand of pickups be sure to check their color codes.
