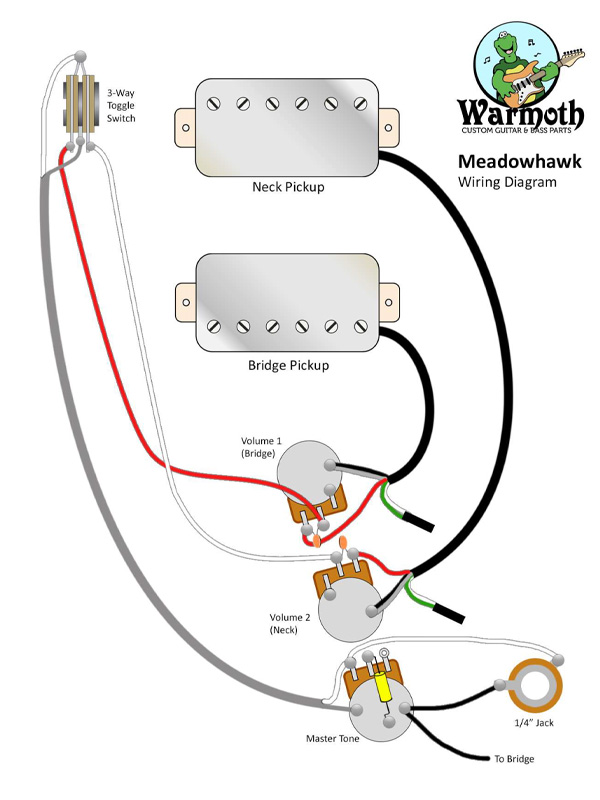

Warmoth Meadowhawk Wiring Diagram

The pickup wire colors in this diagram are for Bare Knuckle pickups, which the Meadowhawks originally came with. If you are using another brand of pickups be sure to check their color codes.
